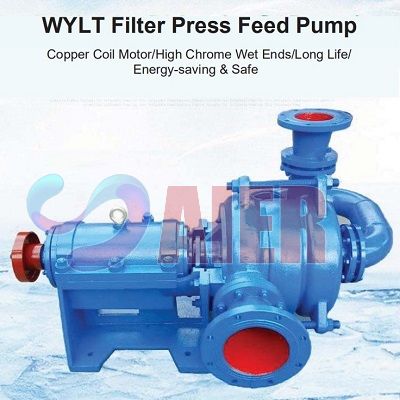

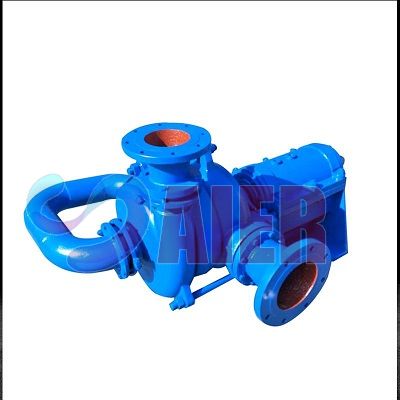

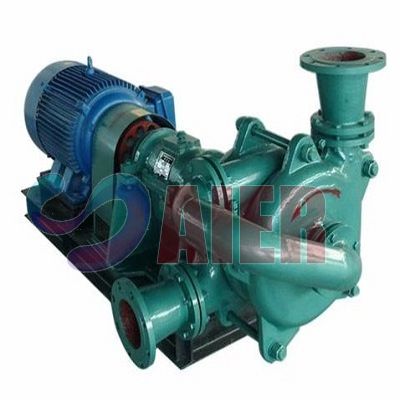

WYLT Filter Press Feed Pump

Brief Description:

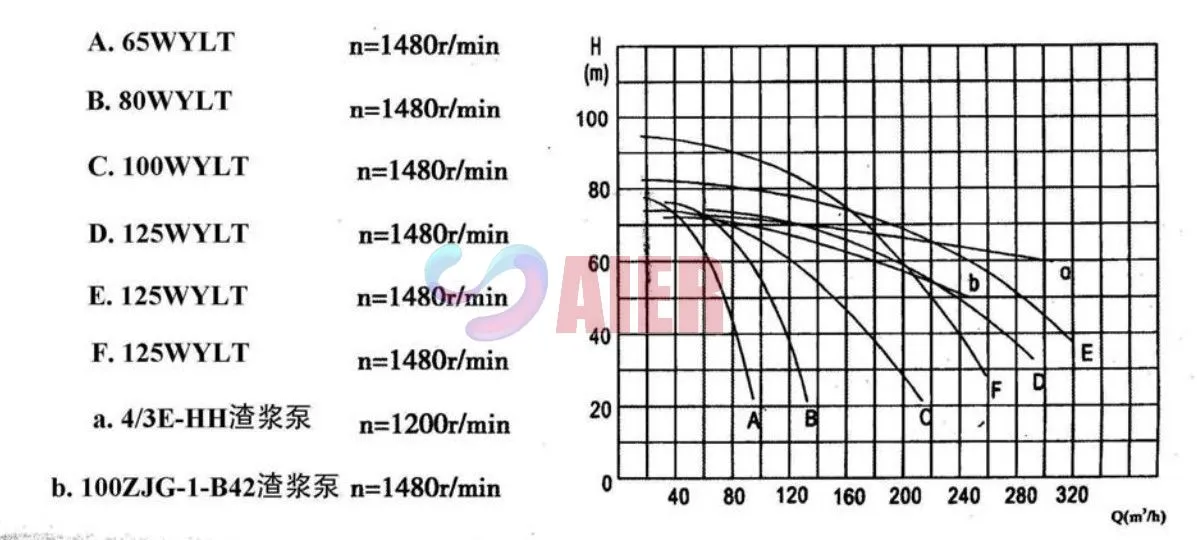

WYLT filter press feed pump is a special kind of centrifugal slurry pump. The suction is at the side of volute liner side. The seal type is packing gland but can guarantee no leakage. The capacity/head curve is sharp and very suitable for some special applications.

Send email to us Download To PDF

Product Detail

Product Tags

Product Description

Product Description

SPECIFICATIONS:
Size: 65mm to 125mm
Capacity: 40-304 m3/h
Head: 25-92 m
Handing solids: 0-70mm
Concentration: 0%-60%
Materials: Hyper chrome alloy, Ceramic, etc.

AIER^® WYZL Filter Press Feed Pump

Introduction

WYZL filter press feed pump is a special kind of centrifugal slurry pump. The suction is at the side of volute liner side. The seal type is packing gland but can guarantee no leakage. The capacity/head curve is sharp and very suitable for some special applications.

Features

1. Reasonable hydraulic design, advanced structure

2. High efficiency, wear resistant, stable operation

3. At the beginning, high capacity, low pressure

4. At the end, low capacity, high pressure

5. Simple seal type, no seal water needed, no mechanical seal

6. No frequency converter needed to adjust the speed

7. High density slurry pumping

Selection

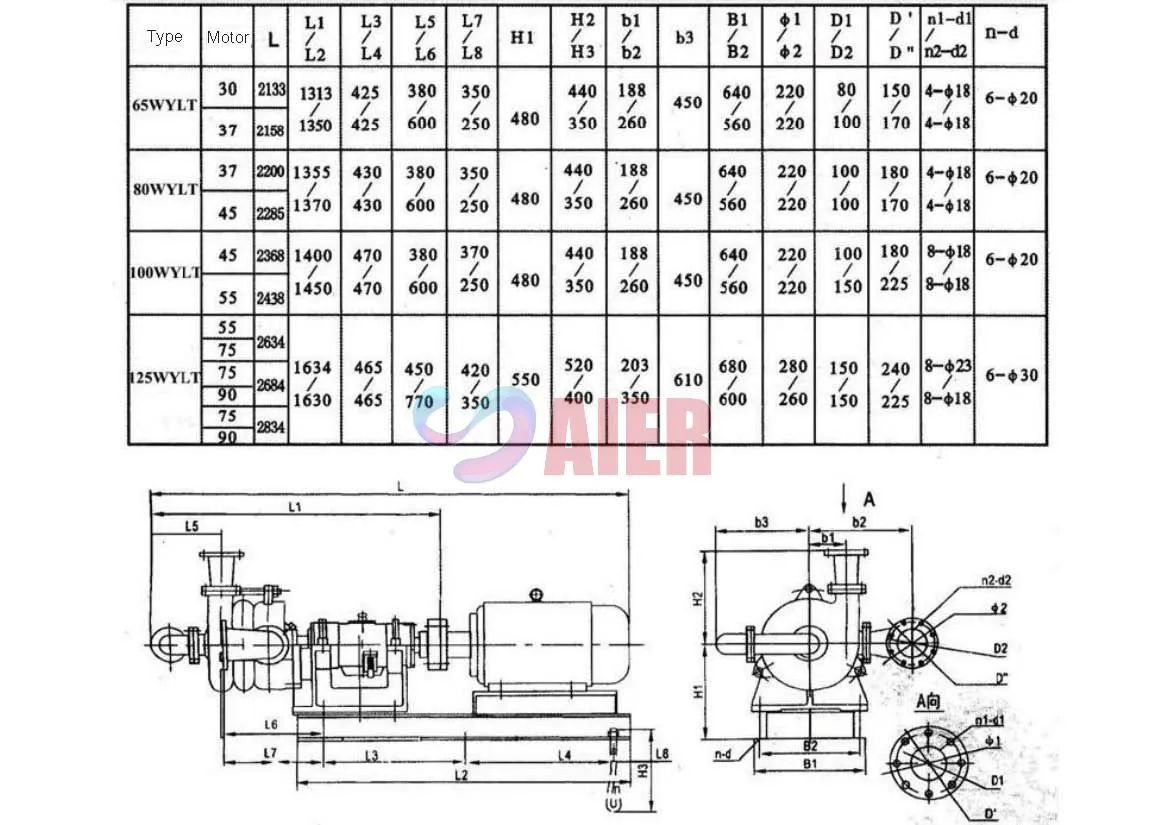

WYZL filter press feed pump normally works at 1480rpm. For low press requirements, we can cut the impeller diameter or change the pump speed to meet the applications. If the belt-pulley coupling type is required, installation drawings will be made separately.

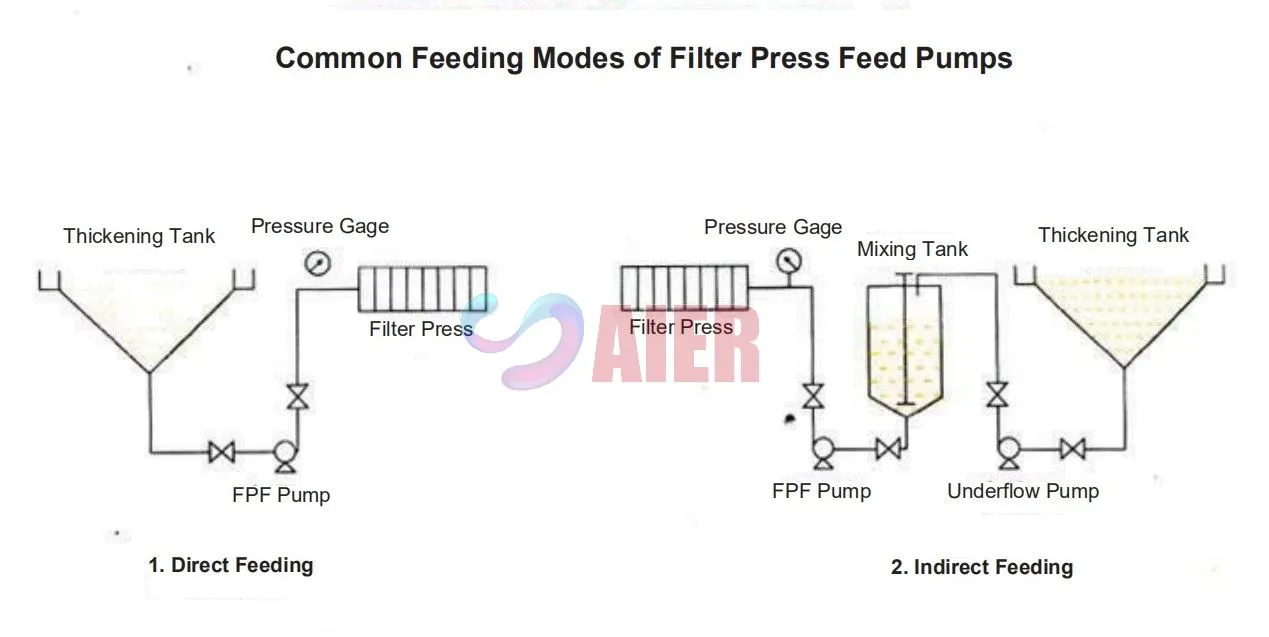

Flood suction is suggested for its press suction and low suction head.

The suction/discharge diameter of pipe should be the same or bigger than the pump.

For high density slurry, the inlet pipe should not be very long to avoid affecting suction.

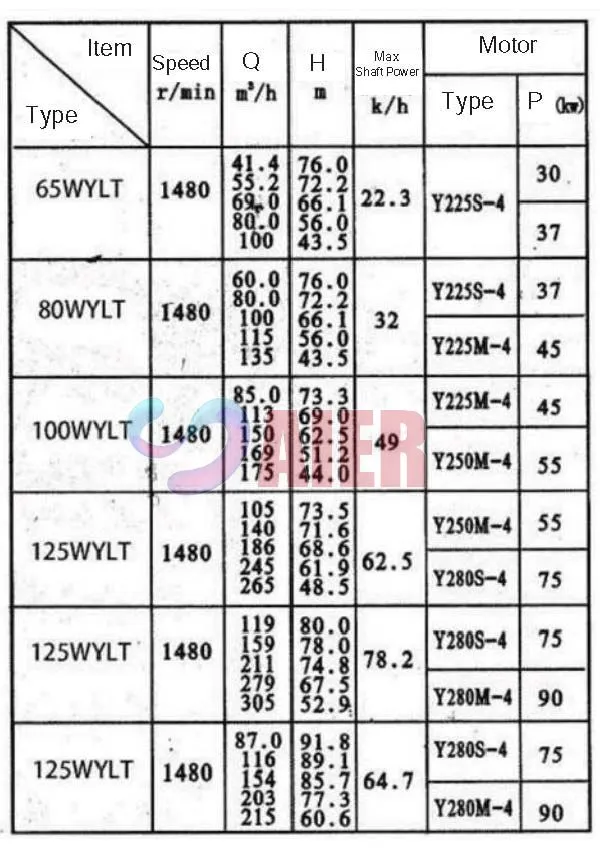

Item Type	Speed r/min	Q m3/h	H m	Max Shaft Power k/h	Motor
					Type	P(kW)
65WYLT	1480	41.4 55.2 69.0 80.0 100	76.0 72.2 66.1 56.0 43.5	22.3	Y225S-4	30
						37
80WYLT	1480	60.0 80.0 100 115 133	76.0 72.2 66.1 56.0 43.5	32	Y225S-4	37
					Y225M-4	45
100WYLT	1480	85.0 113 150 169 175	73.3 69.0 62.5 51.2 44.0	49	Y225M-4	45
					Y250M-4	55
125WYLT	1480	105 140 186 245 265	73.5 71.6 68.6 61.9 48.5	62.5	Y250M-4	55
					Y280S-4	75
125WYLT	1480	119 159 211 279 305	80.0 78.0 74.8 67.5 52.9	78.2	Y280S-4	75
					Y280M-4	90
125WYLT	1480	87.0 116 154 203 215	91.8 89.1 85.7 77.3 60.6	64.7	Y280S-4	75
					Y280M-4	90
