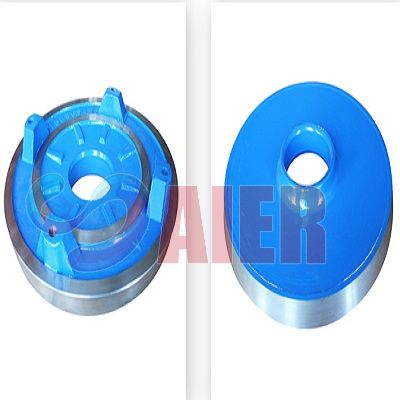

High Chrome Frame Plate Liner Insert (Back Liner)

Frame plate liner insert 041, also called back liner, is located behind the slurry pump impeller. It forms a pump chamber with volute liner and throatbush where the slurry flows through.


Frame Plate Liner Insert Code Slurry Pump Model
B1041 1.5/1B-AH
B15041 2/1.5B-AH
C2041 3/2C-AH
D3041 4/3C-AH, 4/3D-AH
E4041 6/4D-AH, 6/4E-AH
F6041 8/6E-AH, 8/6F-AH, 8/6R-AH
G8041 10/8ST-AH
G10041 12/10ST-AH
G12041 14/12F-AH, 14/12ST-AH
H14041 16/14TU-AH
175041 20A-L
F8041 10/8E-M, 10/8F-M, 10/8R-M
F10041 12/10F-M, 12/10R-M
CH1041 1.5/1C-HH
DH2041 3/2D-HH
EH3041 4/3E-HH
FH4041 6/4F-HH
FH6041 6S-H, 8 / 6S-H
DG4041 6/4D-G, 6/4E-G
EG6041 8/6E-G
FG8041 10/8F-G, 10/8S-G
FG10041 12/10G-G
GG12041 14/12G-G
FGH8041 10/8F-GH
SGGH10041 12/10G-GH
TG14041 16/14TU-GH
SP4041 40PV-SP
SP65041 65QV-SP
SP10041 100RV-SP
SP15041 150SV-SP
SP20041 200SV-SP
SP25041 250TV-SP
SP30041 300TV-SP
