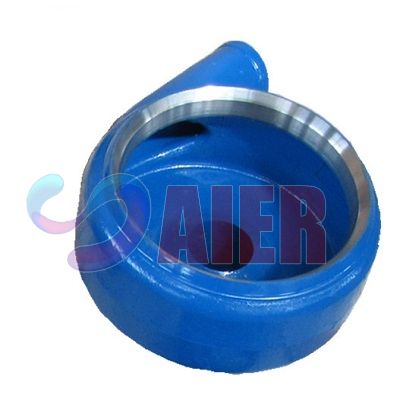

E4110A05 high chrome volute liner

Slurry pump volute liner 110 is mainly used to collect and guide slurry. The volute liner has a semi-closed cavity, forms a flow channel suitable for slurry flow, guides the slurry flow to reduce energy loss, and converts the kinetic energy of the high-speed slurry thrown out by the impeller into static pressure energy.

AH Slurry Pump		L Slurry Pump
Volute Liner Code	Pump Model	Volute Liner Code	Pump Model
B1110	1.5/1B-AH	AL2110	20A-L
B15110	2/1.5B-AH	BL5110	50B-L
C2110	3/2C-AH	CL75110	75C-L
D3110	4/3C-AH, 4/3D-AH	DL10110	100D-L
E4110	6/4D-AH, 6/4E-AH	EL15110	150E-L
F6110	8/6E-AH, 8/6F-AH	SL20110	200E-L
G8110	10/8F-AH, 10/8ST-AH	SL30110	300S-L
G10110	12/10F-AH, 12/10ST-AH	SL35110	350S-L
G12110	14/12F-AH, 14/12ST-AH	TL40110	400ST-L
H14110	16/14TU-AH	TL45110	450ST-L
HH Slurry Pump		UL55110	550TU-L
Volute Liner Code	Pump Model	M Slurry Pump
CH1110	1.5/1C-HH	Volute Liner Code	Pump Model
DH2110	3/2D-HH	F8110	10/8E-M, 10/8F-M,10/8R-M
EH3110	4/3E-HH	F10110	12/10E-M, 12/10F-M
FH4110	6/4F-HH
