ASTM A532 High Chrome Material Slurry Pump Impeller

ASTM A532 High Chrome Material Slurry Pump Impeller

Brief Description:

ASTM A532 High Chrome Material Slurry Pump Impeller


Download To PDF

Product Detail

Product Tags

Product Description

Product Description

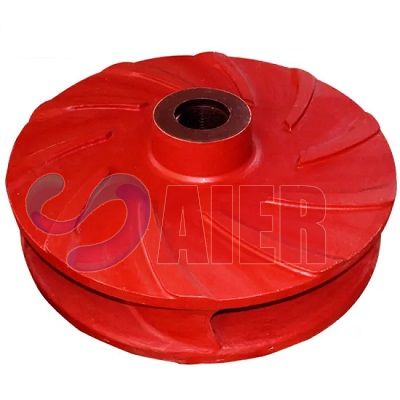

ASTM A532 High Chrome Material Slurry Pump Impeller



The slurry pump impeller refers to the wheel disc equipped with moving vanes, which is the key component of the slurry pump, and is a rotating body with vanes that transmits energy to the liquid, which is composed of several curved vanes.



The standard material for Warman pump wear components is Alloy A05, a white iron alloy that is resistant to abrasion and is equivalent to ASTM A532 Class III Type A.


Impeller Code AH Slurry Pump Impeller Code L Slurry Pump
B1127 1.5/1B-AH 175056 20A-L
B15127 2/1.5B-AH 32056 50B-L
C2147 3/2C-AH 43056 75C-L
C2127 3/2C-AH 64056 100D-L
D3147 4/3C-AH, 4/3D-AH 86056 150E-L
D3021 4/3C-AH, 4/3D-AH 108056 200E-L
D3058 4/3C-AH, 4/3D-AH SL30147 300S-L
E4147 6/4D-AH, 6/4E-AH SL35147 350S-L
E4056 6/4D-AH, 6/4E-AH STL40147 400ST-L
E4058 6/4D-AH, 6/4E-AH STL45147 450ST-L
F6147 8/6E-AH, 8/6F-AH, 8/6R-AH TUL55147 550TU-L
F6056 8/6E-AH, 8/6F-AH, 8/6R-AH Impeller Code G(H) Gravel Pump
F6058 8/6E-AH, 8/6F-AH, 8/6R-AH DG4137 6/4D-G, 6/4E-G
FAM8147 10/8F-AH EG6137 8/6E-G
G8147 10/8ST-AH FG8137 10/8F-G, 10/8S-G
FAM10147 12/10F-AH FG10137 12/10G-G
G10147 12/10ST-AH GG12137 14/12G-G
FAM12147 14/12F-AH FGH8137 10/8F-GH
G12147 14/12ST-AH GGH10137 12/10G-GH
GAM14147 16/14TU-AH TG14148 16/14TU-GH
Impeller Code M Slurry Pump Impeller Code SP Vertical Slurry Pump
F8147 10/8E-M, 10/8F-M, 10/8R-M SP4206 40PV-SP
F10147 12/10F-M, 12/10R-M SP65206 65QV-SP
Impeller Code HH Slurry Pump SP10206 100RV-SP
CH1127 1.5/1C-HH SP15206 150SV-SP
DH2147 3/2D-HH SP20206 200SV-SP
EH3147 4/3E-HH SP25206 250TV-SP
FH4147 6/4F-HH SP30206 300TV-SP
