WP nangtung Froth pompa

WP Vertical Froth Pump

Katerangan singket:

Pompa froth WP cocog pikeun nanganan campuran padet-cair, khusus pikeun nganteurkeun bubur buih anu dihasilkeun dina mesin flotasi dina sirkuit flotasi metaliferoous sareng batubara.


Unduh Ka PDF

Rincian produk

Tag produk

Panjelasan Produk

Panjelasan Produk

spésifikasi:
Ukuran: 2" nepi ka 8"
Kamampuh: 18-620 m3 / h
Sirah: 5-28 m
Efisiensi: nepi ka 55%
Bahan: Hyper chrome alloy, Karét, Polyurethane, Keramik, Stainless steel, jsb.

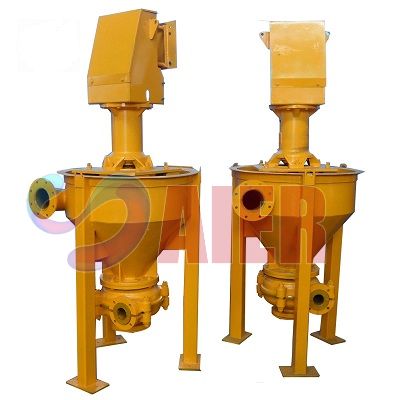

AIER® WP Vertical Froth Pump



WP Series of Froth Pumps mangrupikeun produk pompa efisiensi anu diproduksi ku Aier Machinery Hebei Co., Ltd dina téknologi manufaktur canggih anu diwanohkeun ku hiji perusahaan Australia anu kasohor.



Aplikasi Biasa

Pompa buih nangtung WP cocog pikeun nanganan campuran padet-cair, khusus pikeun nganteurkeun bubur buih anu dihasilkeun dina mesin flotasi dina sirkuit flotasi logam sareng batubara.



 Fitur

Prinsip dasar pompa langkung luhur tibatan jinis pompa slurry sanés tanpa segel aci sareng cai sealing. Pompa froth mangrupikeun pompa anu sampurna pikeun nanganan bubur buih.



The Construction of the pump head is double casing which is similar to the standard construction of Warman slurry pump. All wet parts can be supplied in Ni-hard, high chrome alloy iron, and pressure-molded natural or synthetic rubber. The drive end can be exchanged with that of type WY (equivalent to Warman SP) & WYJ (equivalent to Warman SPR) pumps. The hopper tank is fabricated with a steel plate.  The inner wall of the tank can be covered with liner according to different medium pumped. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.



Kaunggulan tina pompa nyaéta kinerja alus teuing, gampang assembly & disassembly, reliabiliti tinggi, jeung sajabana



Jenis Notasi

Contona: 50WP-Q

               50 - Diaméter kaluaran (mm)

               Q - Tipe pigura

               WP - Froth Pompa

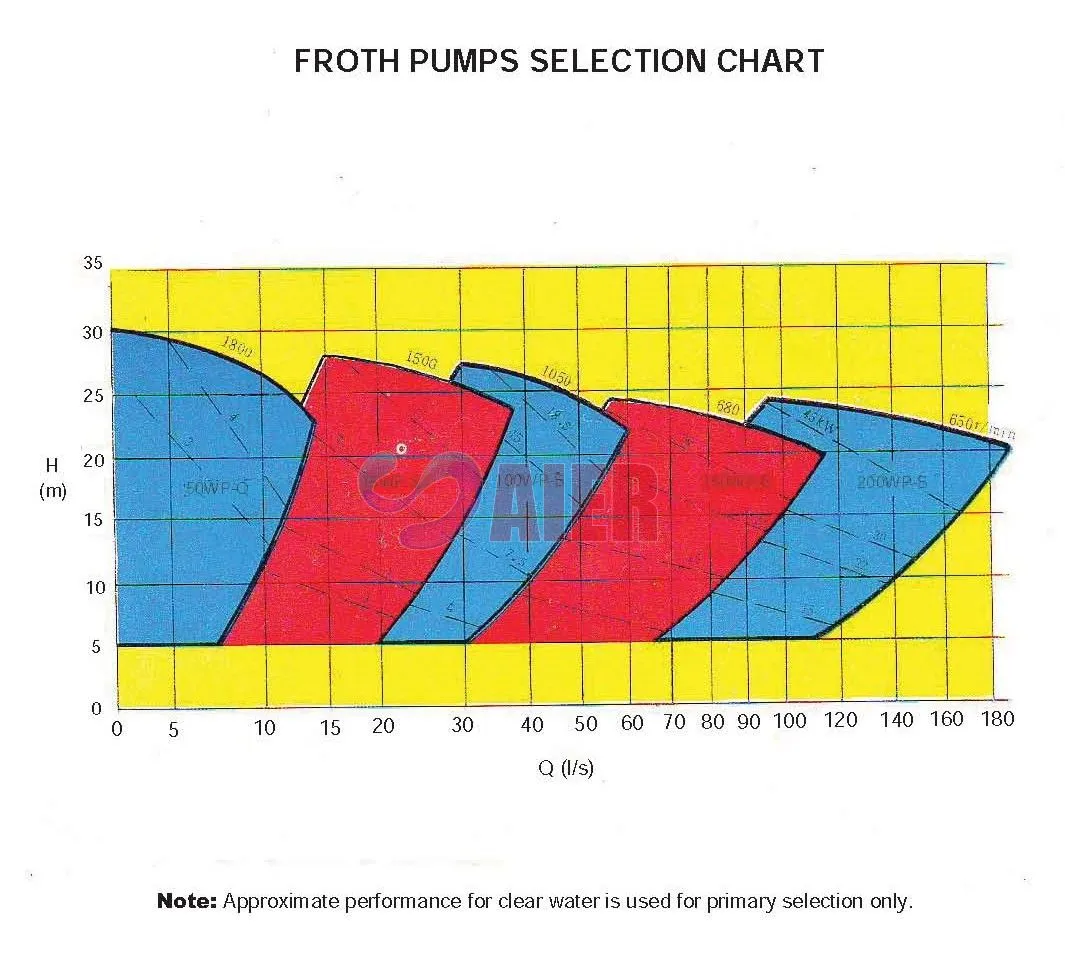

Bagan kinerja

Froth PUMP Bagan Pilihan

centrifugal submersible pump manufacturerCatetan: Perkiraan kinerja pikeun cai jernih dipaké pikeun pilihan primér.



Gambar Konstruksi

china submersible pump manufacturer

1 Pigura Pigura 6 Pigura Plate Liner Selapkeun
2 Panutup piring 7 Tangki
3 Panutup Plate Liner Selapkeun 8 Aci
4 Volute Liner 9 Perumahan Bantalan
5 Impeller



Outline Dimensi

Dimensional Drawing.jpg
