I-WY Sump Pump

Incazelo emfushane:

I-WY & WYJ sump pump iyiphampu ye-slurry eyi-centrifugal, ecwilisiwe ukuze idlulise i-abrasive, izinhlayiya ezimahhadla kanye nodaka oluphezulu lokuminyana. Lapho isebenza, ayidingi manzi ophawu noma yiluphi uhlobo lwesivalo. Ingasebenza kahle futhi lapho ivolumu yokudonsa inganele.

Thumela i-imeyili kithi Landa Ku-PDF

Imininingwane Yomkhiqizo

Omaka bomkhiqizo

Incazelo Yomkhiqizo

Incazelo Yomkhiqizo

IMICIMBI:

Usayizi (ukukhipha): 40mm kuya ku-300mm
Amandla: 7.28-1300 m3/h
Inhloko: 3m-45 m
Izinto eziqinile zokuhambisa: 0-79mm
Ukugxila: 0%-70%
Izinto: High chrome ingxubevange, Rubber,

Polyurethane, Ceramic, Stainless steel njll.

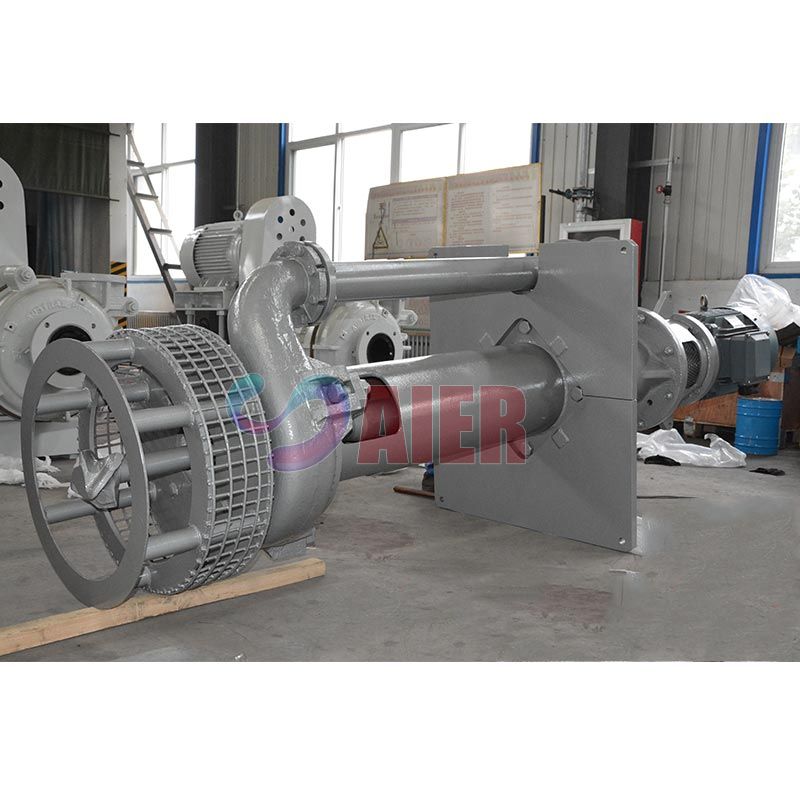

I-AIER® WY Sump Pump

Izicelo Ezijwayelekile

I-Sump drainage noma i-washdown

Ukukhipha amanzi phansi

Mill sump

Ukudluliswa kwekhabhoni

Ukuqapha

Ukuxuba Magnetite

Izici

Isikhwama sepompo sohlobo lwe-WY senziwe ngensimbi engazweli ukuhuzuka, impeller impahla ingaba yinsimbi engazweli ukuhuzuka noma irabha.

Izingxenye ezicwilisiwe ze-WYJ zonke zifakwe irabha, ukuze zidluliselwe udaka olubolayo.

I-Pump Notation

150WY-S:

150: Ububanzi bokukhipha: mm

I-WY: Uhlobo lwephampu: Iphampu ye-sump enengxube ye-chrome ephezulu

S: Uhlobo lwepuleti lozimele

150WYJ-S:

150: Ububanzi bokukhipha: mm

I-WYJ: Uhlobo lwepompo: Iphampu ye-sump enerabha enomugqa

S: Uhlobo lwepuleti lozimele

Umklamo Wokwakha

I-WY High Chrome Alloy Lined

1. Umphini

2. I-Labyrinth

3. Ukuzala

4. Ukuthwala i-Spacer

5. Izindlu Zokuthwala

6. Ukuzala

7. Ikholomu

8. Isihluzi

9. I-Back Line

10. Impeller

11. Isikhwama sepompo

12. I-Lower Strainer

13. Ipayipi Lokukhipha

14. Hlukanisa i-Flange yokukhipha

1. Umphini

2. I-Labyrinth

3. Ukuzala

4. Ukuthwala i-Spacer

5. Izindlu Zokuthwala

6. Ukuzala

7. Ikholomu

8. Isihluzi

9. I-Back Line

10. Impeller

11. Isikhwama sepompo

12. I-Lower Strainer

13. Ipayipi Lokukhipha

15. Ikholomu Bolt & Nut

16. I-Bolt yekholomu

Pump Ingxenye Material

Ingxenye Igama	Okubalulekile	Ukucaciswa	HRC	Isicelo	Ikhodi ye-OEM
I-Casing, Back Liner & Impeller	Insimbi Eqinile	AB8: KmTBCr8	≥55	Isetshenziselwa iphampu yodaka	A01
		AM: KmTBMnMo	38-42	Isetshenziselwa ukugqoka okukhanyayo okusanhlamvu okuhle	A11
		AB27: 23% -30% insimbi emhlophe ye-chrome	≥56	Isetshenziselwa ukugqoka okuphezulu nge-pH ephakathi kuka-5 no-12	A05
		AB15: 14% -18% insimbi emhlophe ye-chrome	≥59	Isetshenziselwa ukugqoka okuphezulu	A07
		AB29: 27% -29% insimbi emhlophe ye-chrome	43	Isetshenziselwa isimo esiphansi se-pH ikakhulukazi ku-FGD. Ingaphinde isetshenziselwe isimo esinomuncu ophansi kanye nokufakwa kwe-desulfurization nge-pH engekho ngaphansi kuka-4	A49
		AB33: 33% -37% insimbi emhlophe ye-chrome		Ingakwazi ukuthutha i-oxygen slurry ene-pH ingabi ngaphansi kwe-1 njenge-phospor-plaster, i-nitric acid, i-vitriol, i-phosphate njll.	A33
	Irabha				R08
					R26
					R33
					R55
Umphini	Insimbi	Insimbi ye-carbon			E05
Izindandatho ezihlangene nama-seal	Irabha	Butyl			S21
		Irabha ye-EPDM			S01
		I-Nitrile			I-S10
		I-Hypalon			S31
		I-Neoprene			I-S44/S42
		Viton			S50

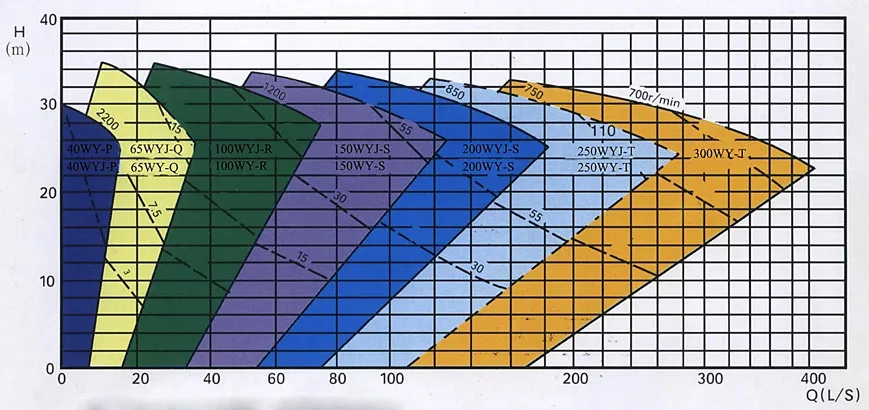

Sula Ukusebenza Kwamanzi

1 WY Sump Pump

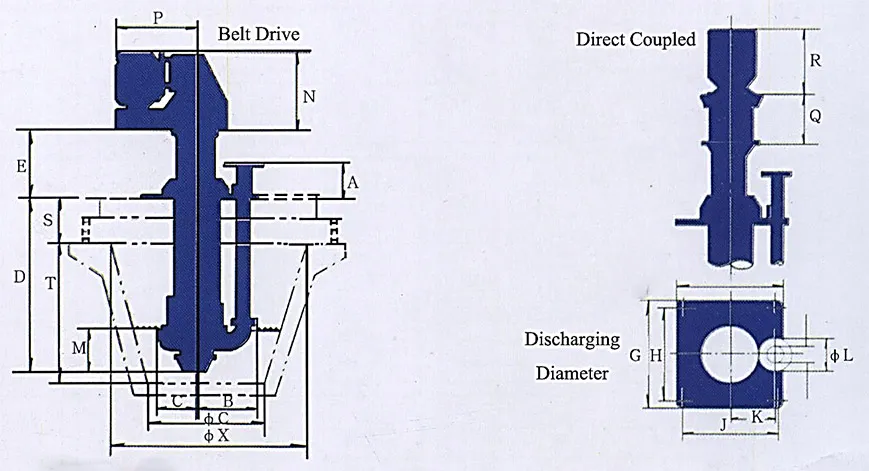

Ubukhulu bokufaka

WY Sump Pump

Uhlobo	Faka i-Flange				Khipha i-Flange
	OD	I-ID	C/C Ngoba Izimbobo	Imbobo	OD	I-ID	C/C Ngoba Izimbobo	Imbobo
40WY-P	φ170	φ81	φ140	4-φ14	φ127	φ40	φ98	4-φ16
40WYJ-P
65WY-Q	φ240	φ104	φ215	4-φ14	φ178	φ65	φ140	4-φ19
65WYJ-Q
100WY-R	φ380	φ175	φ325	4-φ24	φ229	φ100	φ191	8-φ19
100WYJ-R
150WY-S					φ280	φ150	φ241	8-φ22
150WYJ-S
200WY-S					φ343	φ200	φ298	8-φ22
200WYJ-S
250WY-S					φ406	φ250	φ362	12-φ25
250WYJ-S
300WY-S					φ483	φ300	φ432	12-φ25
300WYJ-S
