ዋ ከባድ-ተረኛ slurry ፓምፕ

አጭር መግለጫ:

WA ተከታታይ ከባድ-ግዴታ slurry ፓምፕ cantilevered ነው, አግድም, የተፈጥሮ ጎማ ወይም ጠንካራ ብረት የተሸፈነ ሴንትሪፉጋል slurry ፓምፖች.


የምርት ዝርዝር

የምርት መለያዎች

የምርት ማብራሪያ



ከባድ ተረኛ slurry ፓምፕ ምንድን ነው?

WA ተከታታይ ከባድ ተረኛ slurry ፓምፕ cantilevered ነው, አግድም, የተፈጥሮ ጎማ ወይም ጠንካራ ብረት ተሰልፏል ሴንትሪፉጋል ፈሳሽ ፓምፖች. በብረታ ብረት, ማዕድን, የድንጋይ ከሰል, ሃይል, የግንባታ እቃዎች እና ሌሎች የኢንዱስትሪ ክፍል ውስጥ ብስባሽ, ከፍተኛ ጥግግት slurries ለመያዝ የተነደፉ ናቸው.



ከባድ ተረኛ ፓምፕ መስፈርቶች

መጠን: 1 "እስከ 22"
አቅም: 3.6-5400 m3 / ሰ
ራስ: 6-125 ሜ
ጠንካራ እቃዎች: 0-130 ሚሜ
ትኩረት: 0% -70%

ቁሳቁስ፡ Hyper chrome alloy፣ ጎማ፣ ፖሊዩረቴን፣ ሴራሚክ, አይዝጌ ብረት, ወዘተ.

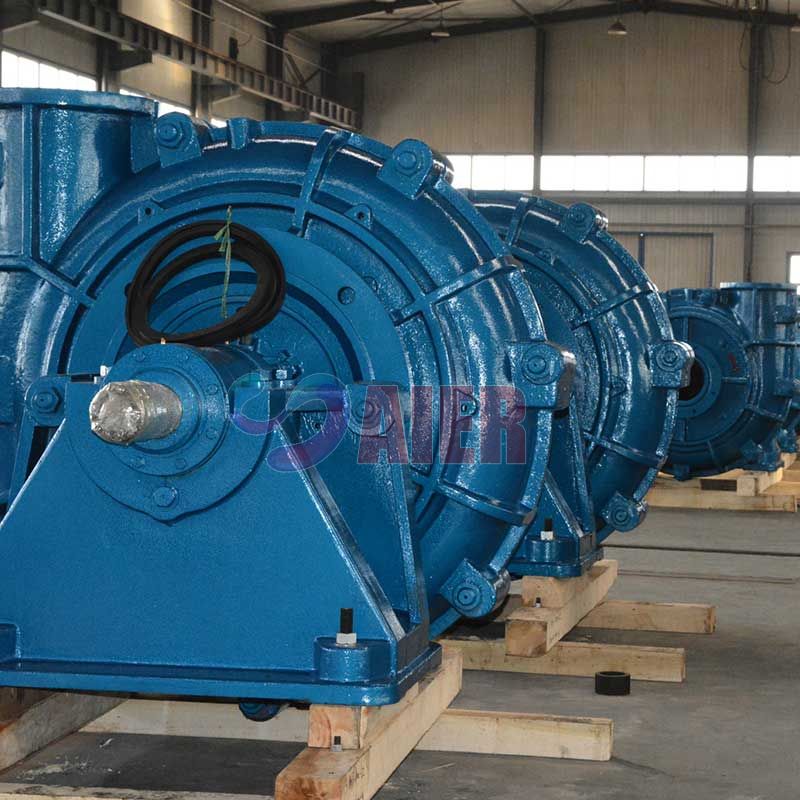

AIER® WA Heavy Duty Slurry Pump



የፍሳሽ ማስወገጃ ፓምፕ ባህሪዎች

1. የክፈፍ ሳህን ለ WA ተከታታይ ፓምፖች ተለዋጭ የሃርድ ብረት ወይም የግፊት ቅርጽ ያላቸው የኤላስቶመር መስመሮች አሉት። መጫዎቻዎቹ ከጠንካራ ብረት ወይም ከግፊት ከተቀረጹ የኤላስቶመር መስመሮች የተሠሩ ናቸው።

2. ለ WA ተከታታይ ዘንግ ማኅተሞች የማሸጊያ ማኅተም፣ ሴንትሪፉጋል ማኅተም ወይም ሜካኒካል ማኅተም ሊሆኑ ይችላሉ።

3. የመልቀቂያው ቅርንጫፉ በ45 ዲግሪ በመጠየቅ እና በማንኛውም ስምንት የስራ መደቦች ላይ ለተጫኑ እና አፕሊኬሽኖች እንዲመች ማድረግ ይችላል። እንደ V-ቀበቶ, ተለዋዋጭ ከተጋጠሙትም, gearbox, በሃይድሮሊክ coupler ተለዋዋጭ ድግግሞሽ, ሲሊከን ቁጥጥር ፍጥነት, ወዘተ እንደ አማራጭ ብዙ ድራይቭ ሁነታዎች አሉ: ከነሱ መካከል, ተለዋዋጭ ዘንግ ከተጋጠሙትም ድራይቭ እና ዝቅተኛ ወጪ እና ቀላል የመጫን V-ቀበቶ ባህሪ.

4. In harsh conditions with sand, sludge, rocks and mud, ordinary slurry pumps tend to clog, wear and fail frequently.. But our heavy-duty slurry pumps are highly resistant to wear and corrosion, which means that the የእኛ የፍሳሽ ፓምፖች የአገልግሎት ሕይወት ከሌሎች አምራቾች ፓምፖች የተሻለ ነው.



የከባድ ተረኛ ፓምፖች የተለመዱ መተግበሪያዎች

የእኛ WA ከባድ ተረኛ slurry ፓምፖች ለመልበስ እና ለመበላሸት በጣም ስለሚቋቋሙ የከባድ ተረኛ ፓምፖች በተለያዩ አፕሊኬሽኖች ውስጥ ጥቅም ላይ ይውላሉ።

1. የ SAG ወፍጮ ፍሳሽ, የኳስ ወፍጮ ፍሳሽ, የሮድ ሚል ፍሳሽ.

2. የኒ አሲድ ዝቃጭ፣ ጥቅጥቅ ያለ አሸዋ፣ ደረቅ ጭራ፣ ፎስፌት ማትሪክስ፣ ማዕድናት ያተኩራሉ።

3. ከባድ ሚዲያ፣ ስኳር ቢት፣ ድራጊንግ፣ ታች/ዝንብ አመድ፣ የኖራ መፍጨት፣ የዘይት አሸዋ፣ የማዕድን አሸዋ፣ ጥሩ ጅራት፣ ስላግ ጥራጥሬ፣ ፎስፎሪክ አሲድ፣ የድንጋይ ከሰል፣ ተንሳፋፊ፣ ሂደት ኬሚካል፣ pulp እና ወረቀት፣ FGD፣ cyclone feed, ወዘተ. .



የፓምፖች ማስታወሻ

200WA-ST፡ 100WAJ-D
200፡ የመውጫው ዲያሜትር፡ ሚሜ 100፡ የመውጫው ዲያሜትር፡ ሚሜ
WA፡ የፓምፕ አይነት፡ chrome alloy lined WAJ፡ የፓምፕ አይነት፡ የጎማ መስመር
ST፡ የፍሬም ሳህን አይነት መ፡ የፍሬም ሳህን አይነት

የእርስዎን የፓምፕ ችግሮች እንዴት እንደሚፈቱ ለማወቅ፣ አግኙን today! We are the slurry pump manufacturer that can help you solve your problems.



የግንባታ ዲዛይን

WA Heavy-duty Slurry Pump Structure

መያዣ

የተከፋፈሉ የ cast ወይም ductile iron ግማሾችን የመልበስ መስመሮችን ይይዛሉ እና ከፍተኛ የኦፕሬሽን ግፊት ችሎታዎችን ይሰጣሉ።



ሊለዋወጡ የሚችሉ ጠንካራ ብረት እና የተቀረጹ የኤላስቶመር መስመሮች

ኢምፔለር

አስመጪው የተቀረጸ ኤላስቶመር ወይም ጠንካራ ብረት ሊሆን ይችላል። ጥልቅ የጎን ማሸጊያ ቫኖች የማኅተም ግፊትን ያስታግሳሉ እና እንደገና ዝውውርን ይቀንሳል።

Cast-in impeller ክሮች ለስላሜቶች የተሻሉ ናቸው።



Mating faces in hard metal liners are tapered to allow positive alignment during assembly and allow components to be easily removed for replacement.



የፓምፕ ክፍል ቁሳቁስ

የክፍል ስም ቁሳቁስ ዝርዝር መግለጫ HRC መተግበሪያ የኦሪጂናል ዕቃ አምራች ኮድ
መስመሮች እና ኢምፔለር ብረት AB27: 23% -30% ክሮም ነጭ ብረት ≥56 ለከፍተኛ የመልበስ ሁኔታ በፒኤች በ5 እና በ12 መካከል ያገለግላል A05
AB15: 14% -18% ክሮም ነጭ ብረት ≥59 ለከፍተኛ የመልበስ ሁኔታ ጥቅም ላይ ይውላል A07
AB29: 27% -29% ክሮም ነጭ ብረት 43 ለዝቅተኛ ፒኤች ሁኔታ በተለይም ለኤፍጂዲ ጥቅም ላይ ይውላል። እንዲሁም ዝቅተኛ ጎምዛዛ ሁኔታ እና desulfuration ጭነት pH ከ 4 ያላነሰ ጥቅም ላይ ሊውል ይችላል A49
AB33: 33% -37% ክሮም ነጭ ብረት   እንደ ፎስፖሮ-ፕላስተር፣ ናይትሪክ አሲድ፣ ቪትሪኦል፣ ፎስፌት ወዘተ የመሳሰሉ ኦክሲጅን ያለው ዝቃጭ በፒኤች ከ 1 ያላነሰ ማጓጓዝ ይችላል። A33
ላስቲክ       R08
      R26
      R33
      R55
የአሳዳሪ እና የአሳዳሪ ቀለበት ብረት B27: 23% -30% ክሮም ነጭ ብረት ≥56 ለከፍተኛ የመልበስ ሁኔታ በፒኤች በ5 እና በ12 መካከል ያገለግላል A05
ግራጫ ብረት     ጂ01
የእቃ መጫኛ ሳጥን ብረት AB27: 23% -30% ክሮም ነጭ ብረት ≥56 ለከፍተኛ የመልበስ ሁኔታ በፒኤች በ5 እና በ12 መካከል ያገለግላል A05
ግራጫ ብረት     ጂ01
ፍሬም/የሽፋን ሰሃን ፣ ተሸካሚ ቤት እና መሠረት ብረት ግራጫ ብረት     ጂ01
ዱክቲክ ብረት     D21
ዘንግ ብረት የካርቦን ብረት     E05
ዘንግ እጅጌ፣ የፋኖስ ቀለበት/መስተላለፊያ፣ የአንገት ቀለበት፣ እጢ ቦልት የማይዝግ ብረት 4Cr13     C21
304 ኤስ.ኤስ     C22
316 ኤስ.ኤስ     C23
የመገጣጠሚያ ቀለበቶች እና ማህተሞች ላስቲክ ቡቲል     S21
EPDM ላስቲክ     S01
ኒትሪል     S10
ሃይፓሎን     S31
ኒዮፕሪን     S44/S42
ቪቶን     S50

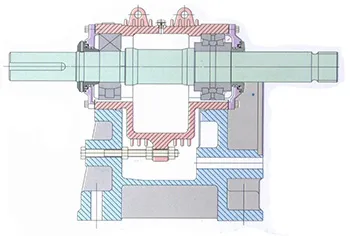

የማስተላለፊያ ሞዱል ንድፍ

ትልቅ ዲያሜትር የፓምፕ ዘንግ, ሲሊንደር

የከባድ ጭነት ግንባታ ፣ የዘይት ቅባት ወይም የቅባት ቅባት በመጠቀም ሜትሪክ ተሸካሚ; በተከታታይ ተከፍቷል, የአነስተኛ መጠን እና ከፍተኛ አስተማማኝነት የግንባታ ባህሪያት.

transmission module design
WA series heavy-duty slurry pump

ዘንግ ተሸካሚ ስብሰባ

አጭር መደራረብ ያለው ትልቅ ዲያሜትር ዘንግ ማፈንገጥ እና ንዝረትን ይቀንሳል።

ከባድ ተረኛ ሮለር ተሸካሚዎች በሚንቀሳቀስ መያዣ ውስጥ ተቀምጠዋል።

የፓምፕ መሠረት

ፓምፑን በመሠረቱ ላይ በትንሹ የቁጥሮች ብዛት ይዝጉ እና ከመያዣው መኖሪያ በታች ምቹ በሆነ ቦታ ላይ ተቆጣጣሪውን ያስተካክሉ።

የውሃ መከላከያ ሽፋን የውሃ ፍሳሽ እንዳይበር ይከላከላል.

የመከላከያ ሽፋን ከተሸካሚው ቅንፍ ውስጥ የውሃ ፍሳሽን ይከላከላል.

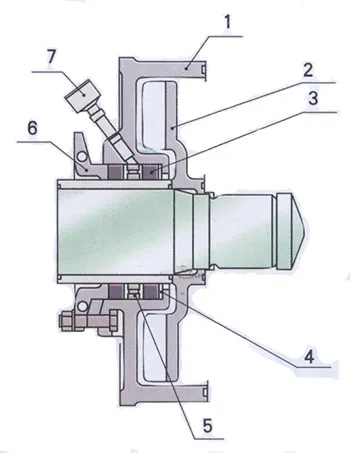

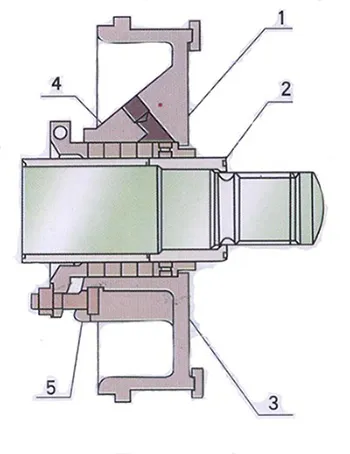

የሻፍ ማህተም ሞዱል ንድፍ

Shaft Seal Module Design

1. የማሸጊያ ሳጥን

2. የፊት ፋኖስ ቀለበት

3. ማሸግ

4. ማሸግ እጢ

5. ዘንግ እጀታ

1. እጢን መልቀቅ

2. ኤክስፐርት

3. ማሸግ

4. ማሸግ Gasket

5. የፋኖስ ቀለበት

6. ማሸግ እጢ

7. የዘይት ዋንጫ

Shaft Seal Module Design

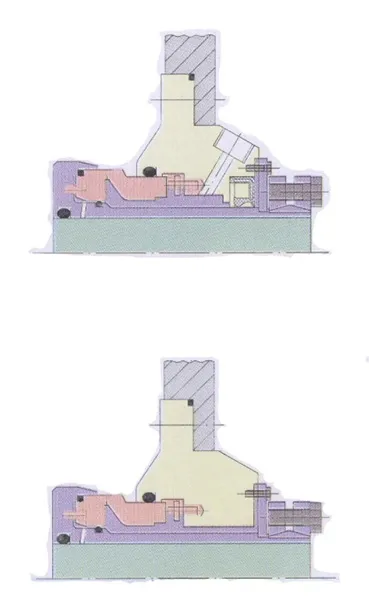

Slurry Pump GRJ Mechanical Seal

GRJ ሜካኒካል ማህተም

የጂአርጂ አይነት ለመሟሟት ላልተፈቀደለት ፈሳሽ ጥቅም ላይ ይውላል።

HRJ ሜካኒካል ማህተም

የ HRJ አይነት ለተፈቀደው ፈሳሽ ጥቅም ላይ ይውላል.

ከፍተኛ ጥንካሬ ሴራሚክ እና አጋሮች ለግጭት ክፍሎች ቁሳቁስ ተቀባይነት አላቸው። የማኅተም ውጤት በተለያዩ ሁኔታዎች በደንበኛው ሊረካ እንደሚችል ለማረጋገጥ ከፍተኛ የመቧጨር መቋቋም እና የመንቀጥቀጥ ማረጋገጫ አለው።

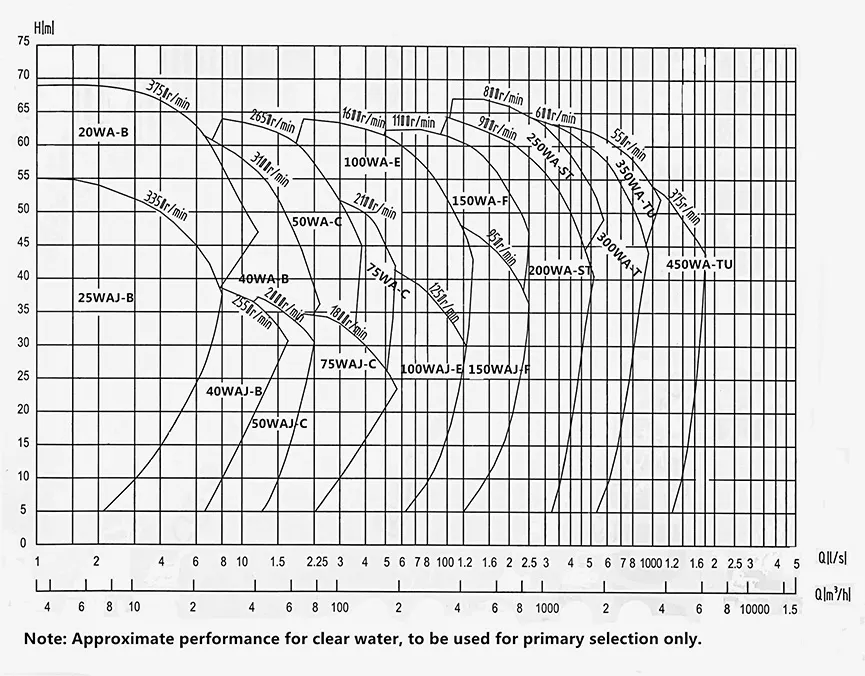

የአፈጻጸም ከርቭ

WA Slurry PumpWA Slurry Pump

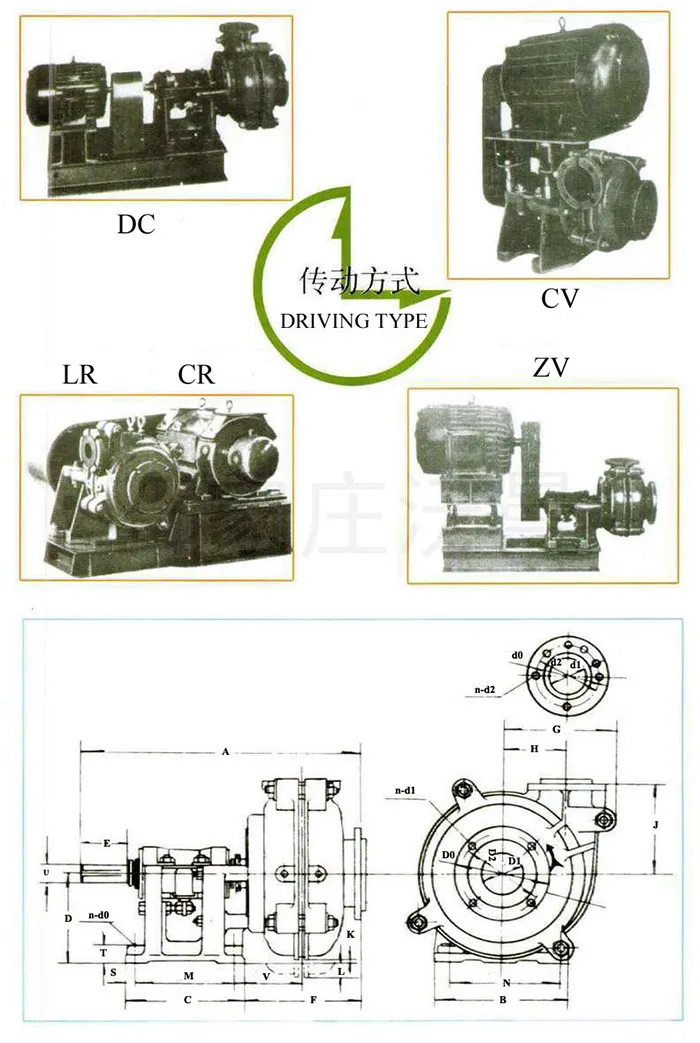

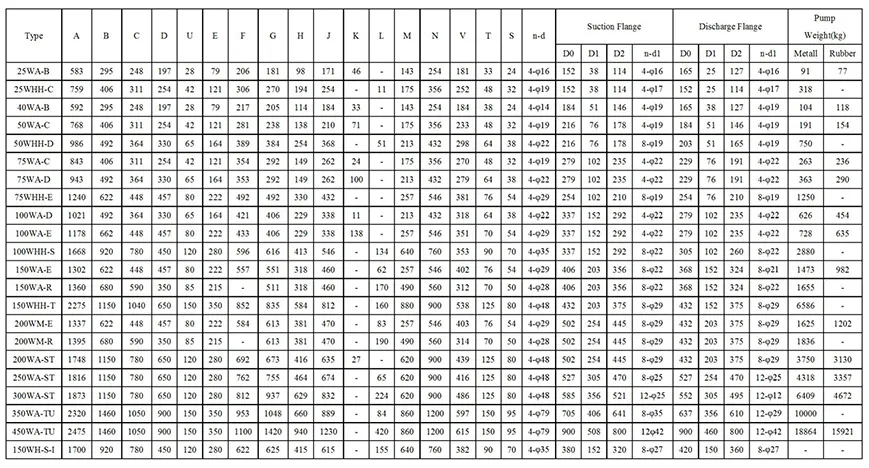

የመጫኛ ልኬቶች

Installation Dimensions

ስሉሪ ፓምፕ ኢምፔለር ምርጫ

Slurry pump impeller is one of the most important parts of centrifugal slurry pumps. Depending on the application, slurry pump impeller selection is crucial to slurry pump performance. Slurry applications can be especially hard on the impeller of slurry pumps because of their abrasive nature. In order slurry pumps operates efficiently and stand up to the test of time, impeller has to be selected properly for slurry pumps.

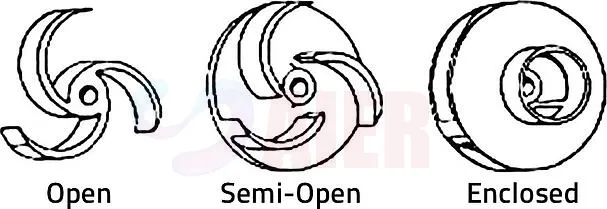

1. Slurry Pump Impeller አይነት
ሦስት የተለያዩ ዓይነት slurry ፓምፕ impellers አሉ; ክፍት ፣ የተዘጋ እና ከፊል ክፍት። እያንዳንዳቸው የራሳቸው ጥንካሬ እና ድክመቶች አሏቸው, እንደ ማመልከቻው ይወሰናል. አንዳንዶቹ ለጠጣር አያያዝ የተሻሉ ናቸው, ሌሎች ደግሞ ለከፍተኛ ቅልጥፍና የተሻሉ ናቸው.
Any type of impeller can be used in slurry applications, but closed slurry pump impellers are more common because they are high efficient and abrasion Resistance,. Open slurry pump impellers are usually used well for high concentration solids as they are less likely to clog. For example, the small fibers in paper stock which, in high densities, may have a tendency to clog the impeller. Pumping slurry can be difficult.

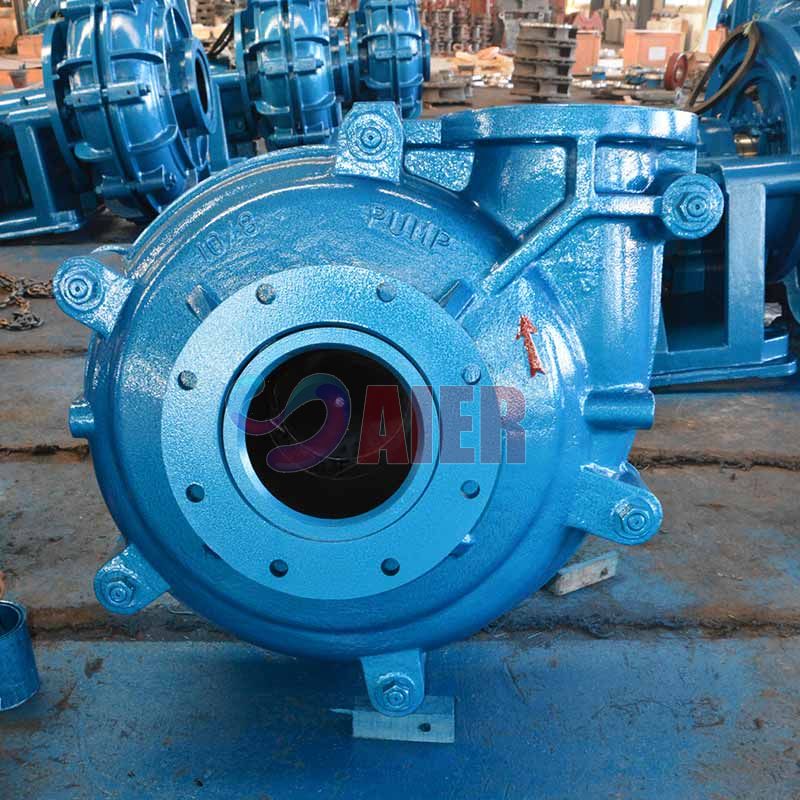

WA Heavy-duty Slurry Pump
2. ስሉሪ ፓምፕ ኢምፕለር መጠን
The size of slurry pump impeller must be considered to ensure it holds up against abrasive wear. Slurry pump impellers are generally larger in size when compared to slurry pumps for less abrasive liquids. The more “meat” the impeller has, the better it will hold up to the task of pumping harsh slurry mixtures. Just think of slurry pump impeller as a football team’s offensive line. These players are usually large and slow. Throughout the whole game they are beaten up, over and over again, but expected to withstand the abuse. You wouldn’t want small players in this position, just like you wouldn’t want a small impeller on your slurry pumps.
3. የዝላይት ፓምፕ ፍጥነት
Process speed doesn’t have anything to do with choosing slurry pump impeller, but it does have an effect on the life of slurry pump impeller. It is important to find the sweet spot that allows the slurry pump to run as slow as possible, but fast enough to keep solids from settling and clogging. If pumping too fast, the slurry can quickly erode the impeller due to its abrasive nature. This is why it is important to select a larger impeller if possible.
When dealing with slurry, you generally want to go bigger and slower. The thicker the impeller, the better it will hold up. The slower the pump, the less erosion will inflict on the impeller. However, the impeller isn’t the only thing to worry in slurry pump when dealing with slurry. Tough, durable materials of construction are necessary most of the time. Metal slurry pump liners and wear plates are common in slurry applications.



የፍሳሽ ማስወገጃ ፓምፕ መትከል

አግድም ስሉሪ ፓምፕ መጫን

The mounting and installation of horizontal slurry pumps are generally subject to a number of considerations, including floor space, overhead space for lifting and the likelihood of flooding from spills. Pumps in critical services are often paired in duty/standby mode so that maintenance can be carried out on one pump while the other is running.
Large slurry pumps with high-energy motors - and perhaps with speed reduction gearboxes - would generally be mounted with the shaft axes in the same horizontal plane for ease of maintenance access.
A slurry pump with a belt drive may have the motor mounted beside it if there is sufficient floor space. However, if floor space is limited or there is a risk of flooding, the motor can be mounted above it either directly overhead (also known as “C drive”) or to its rear (reverse overhead mounting or “Z drive”).


Vertical Slurry Pump Installation

Vertical cantilever shaft sump pumps should be selected so that the suction inlet is close to the sump floor. If shaft length is limited by the required running speed and power to be transmitted, a suction pipe (generally two meters long) may be fitted to the suction branch to ensure the sump can be emptied.
